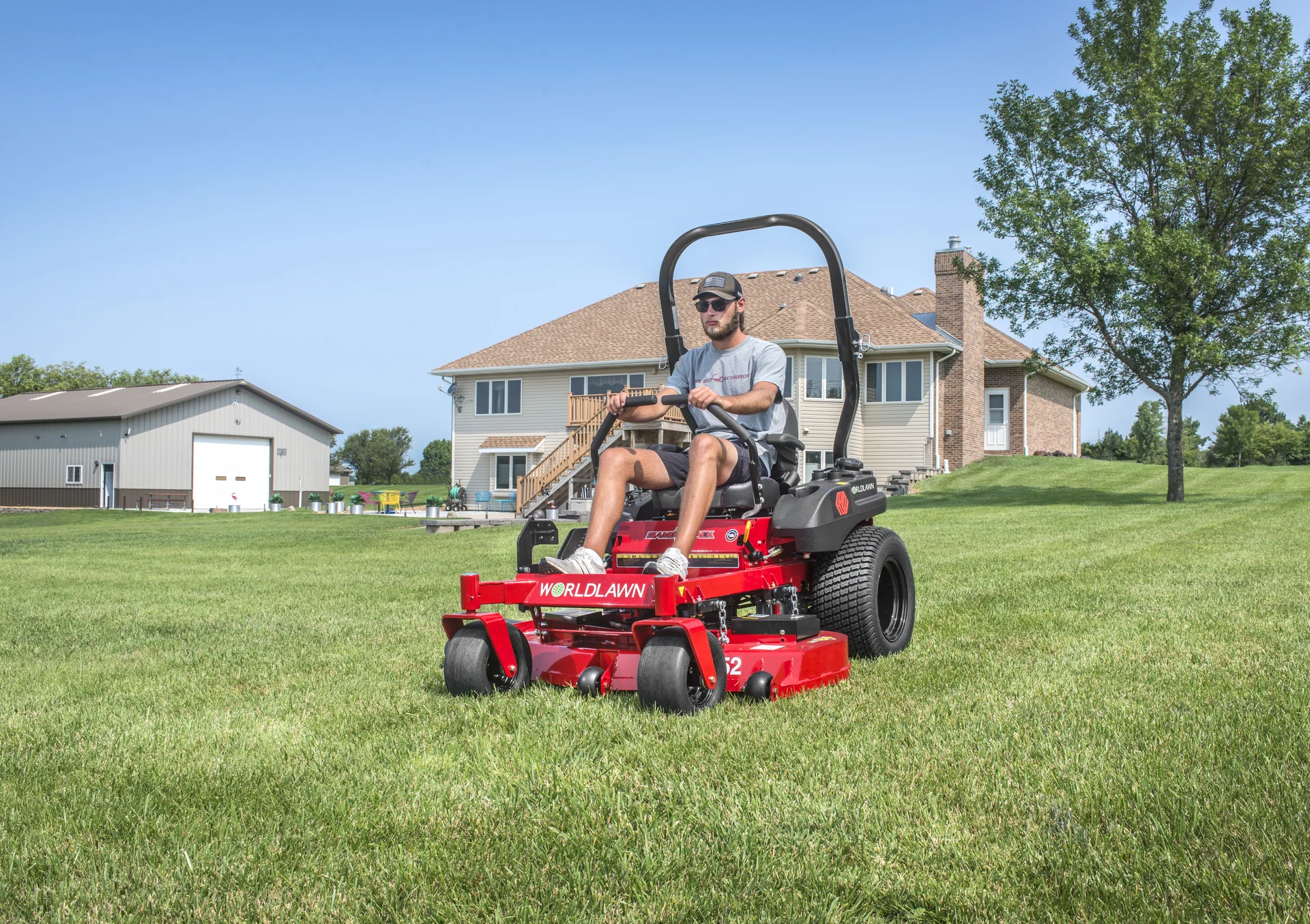

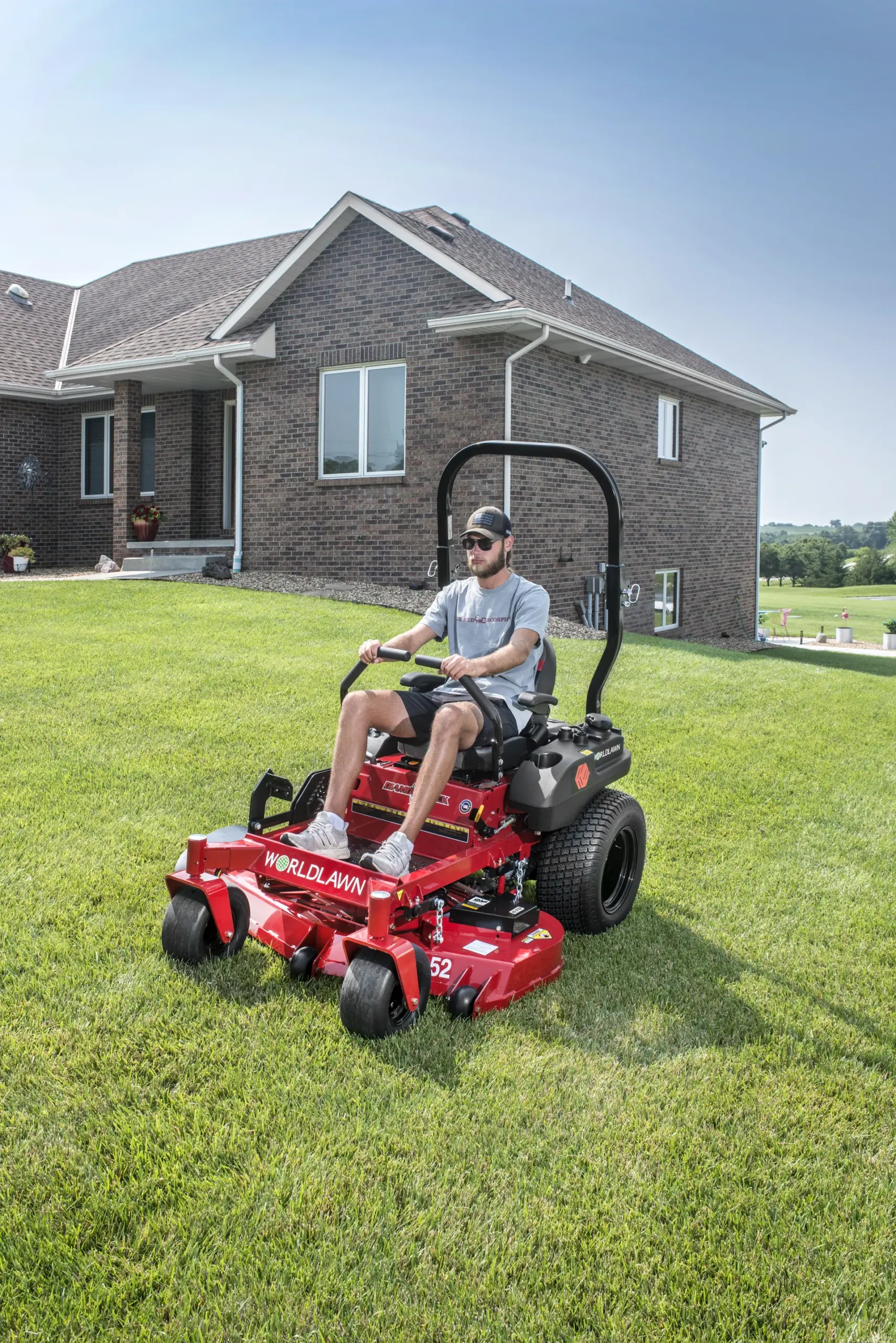

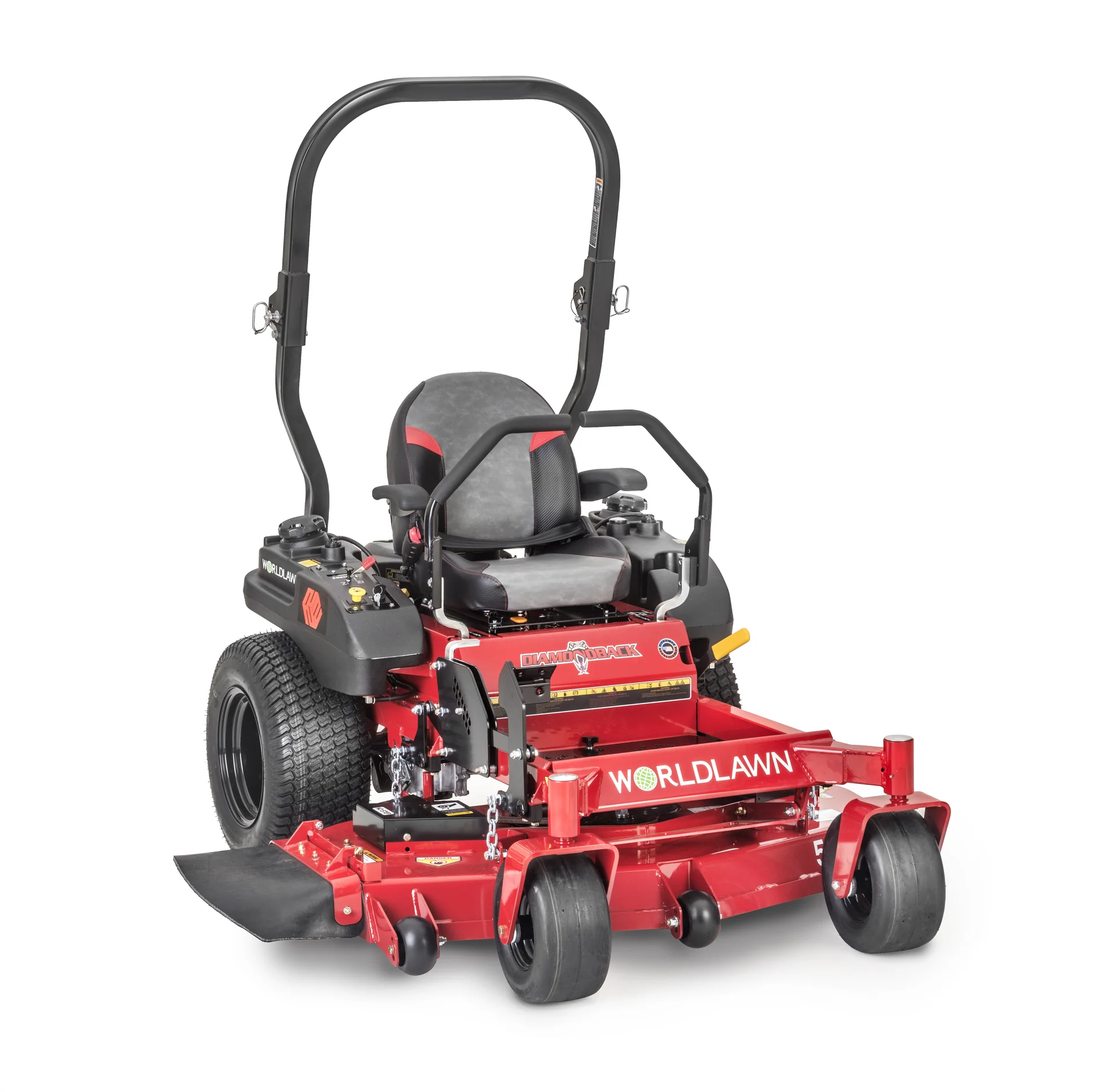

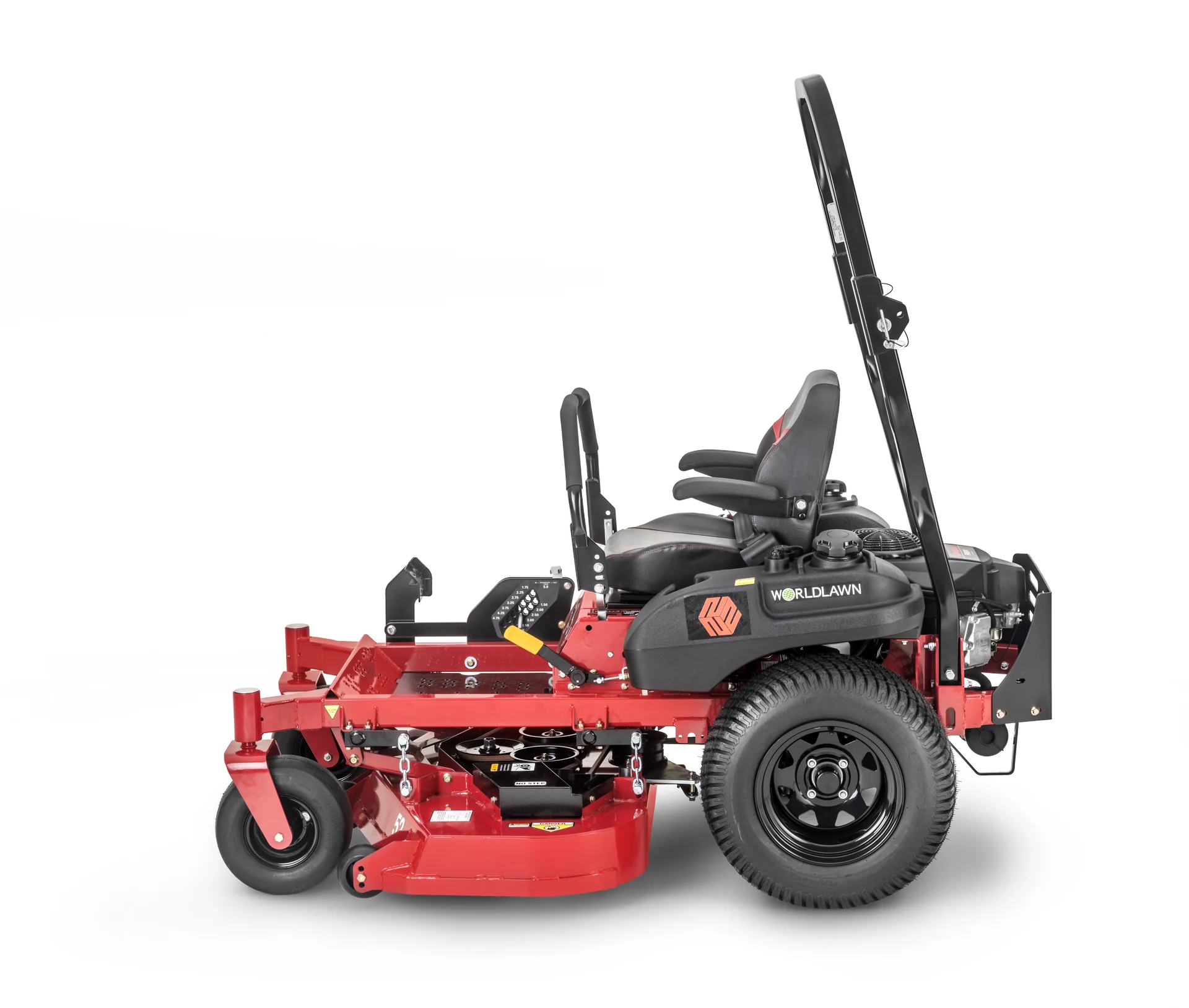

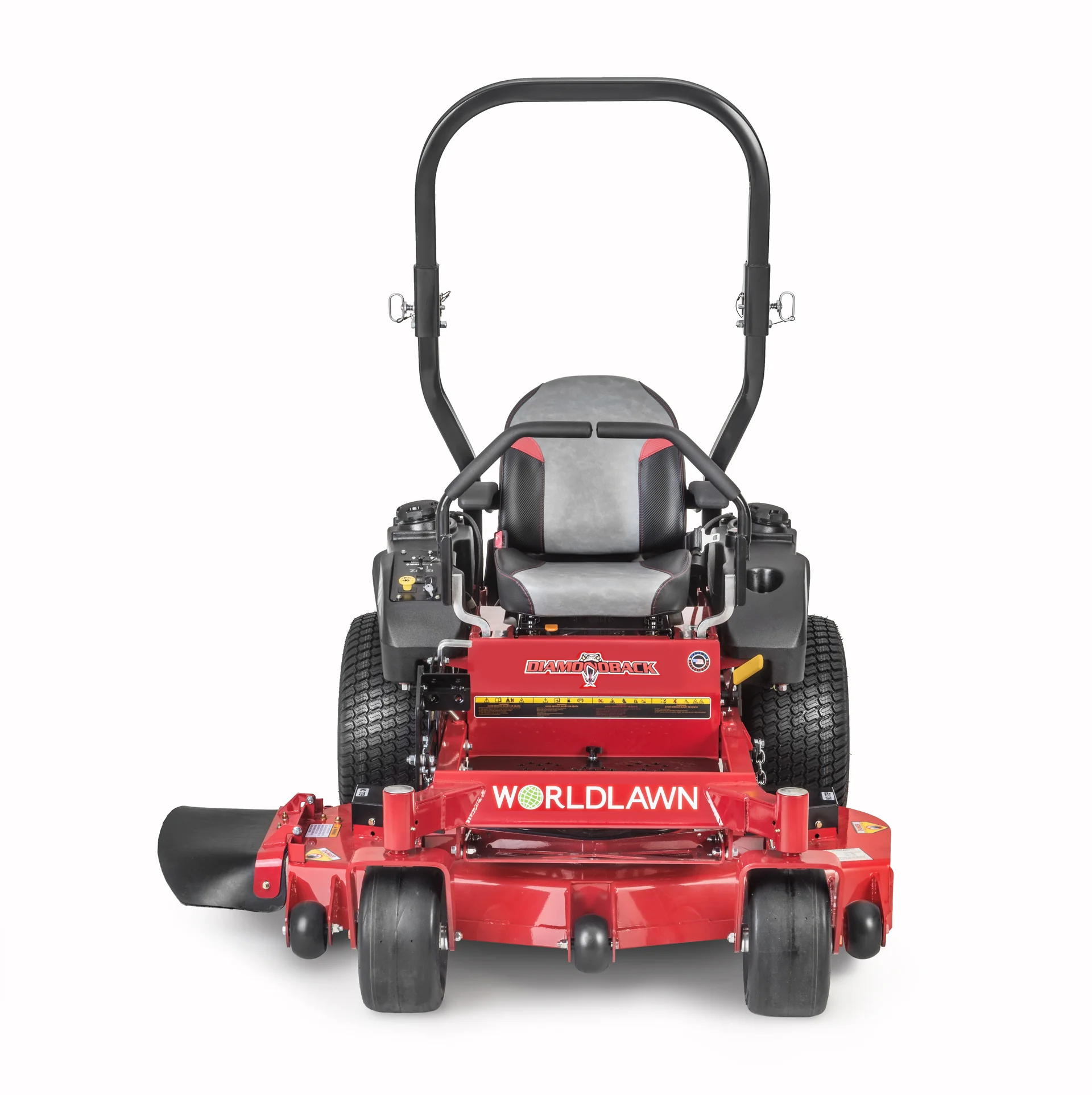

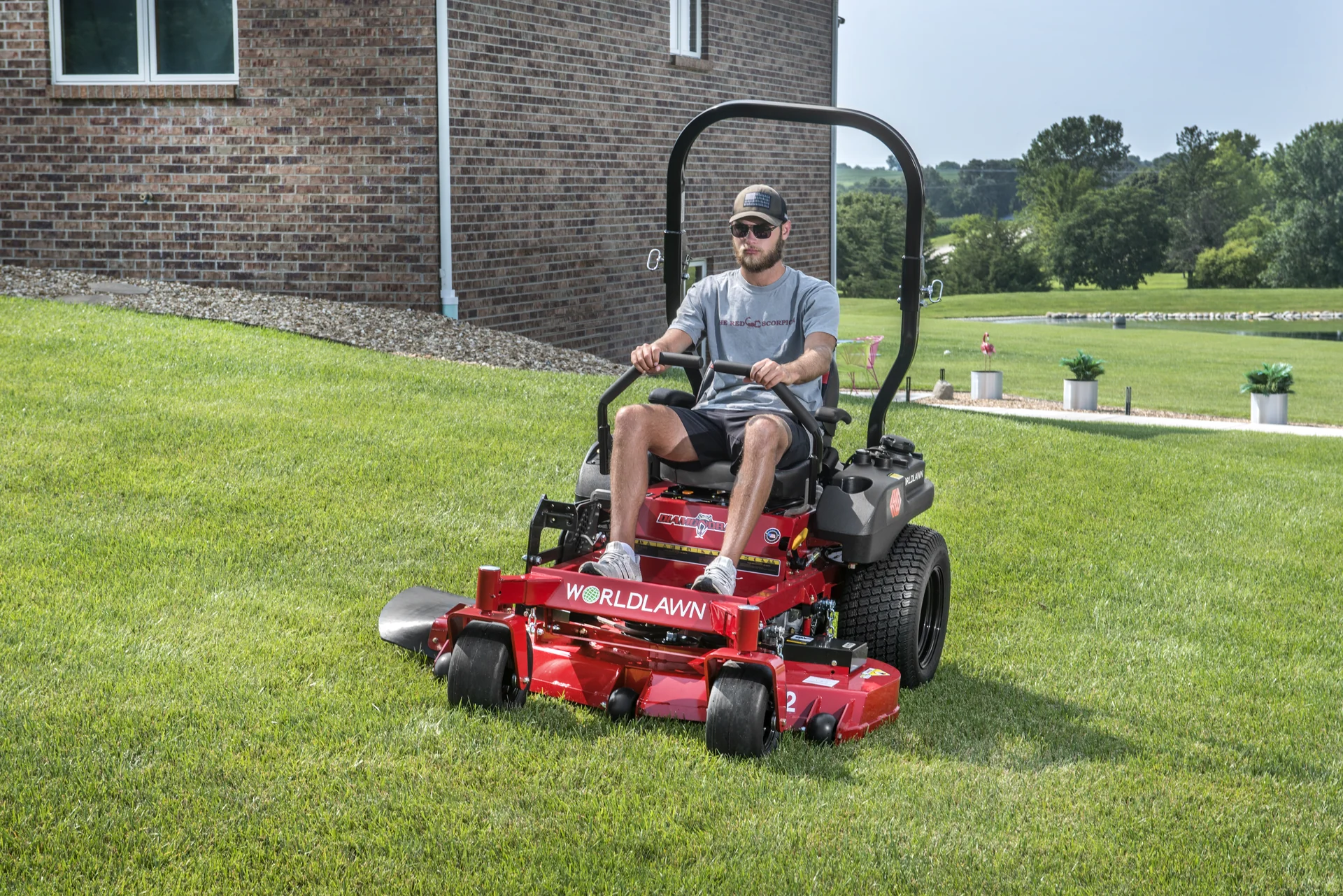

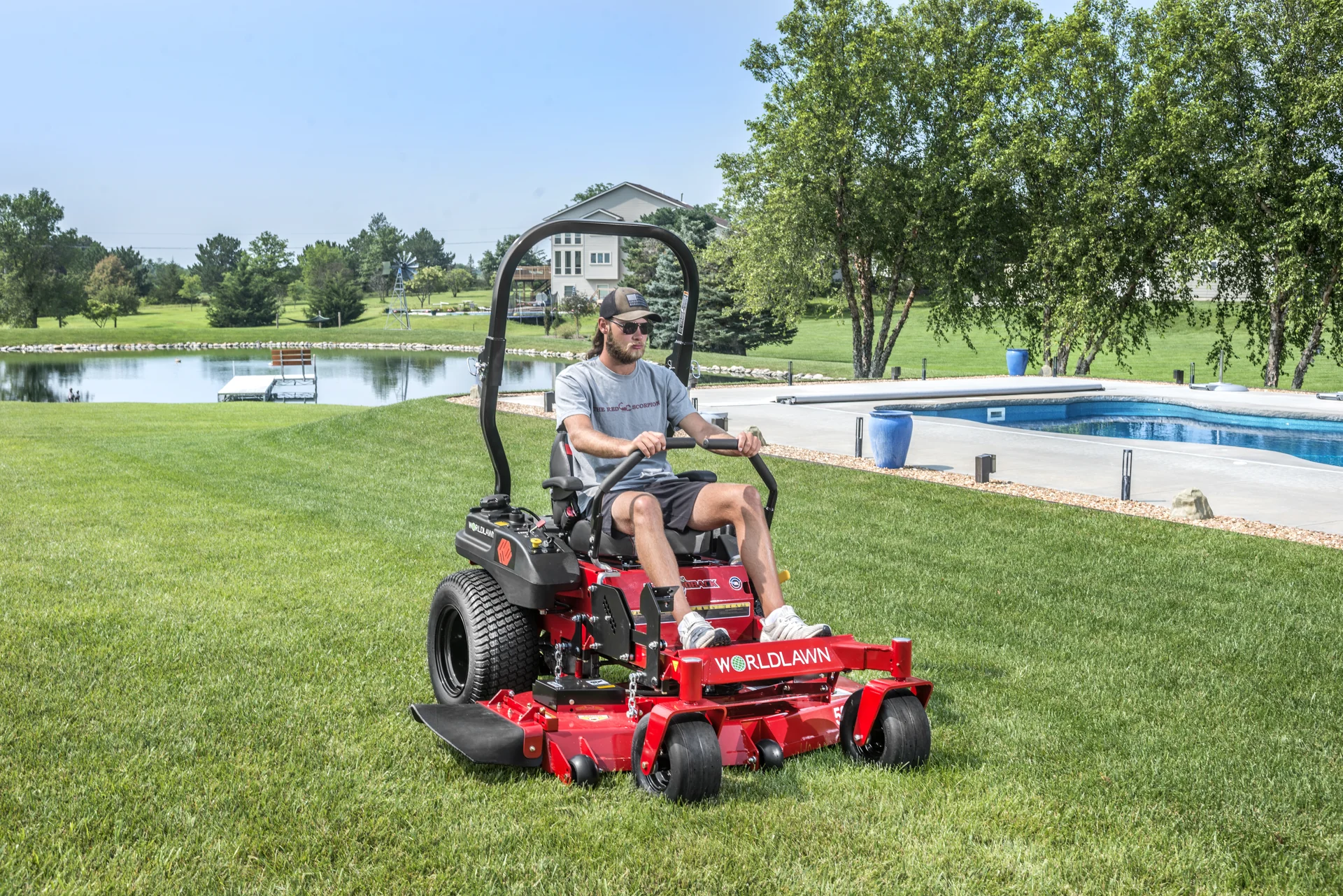

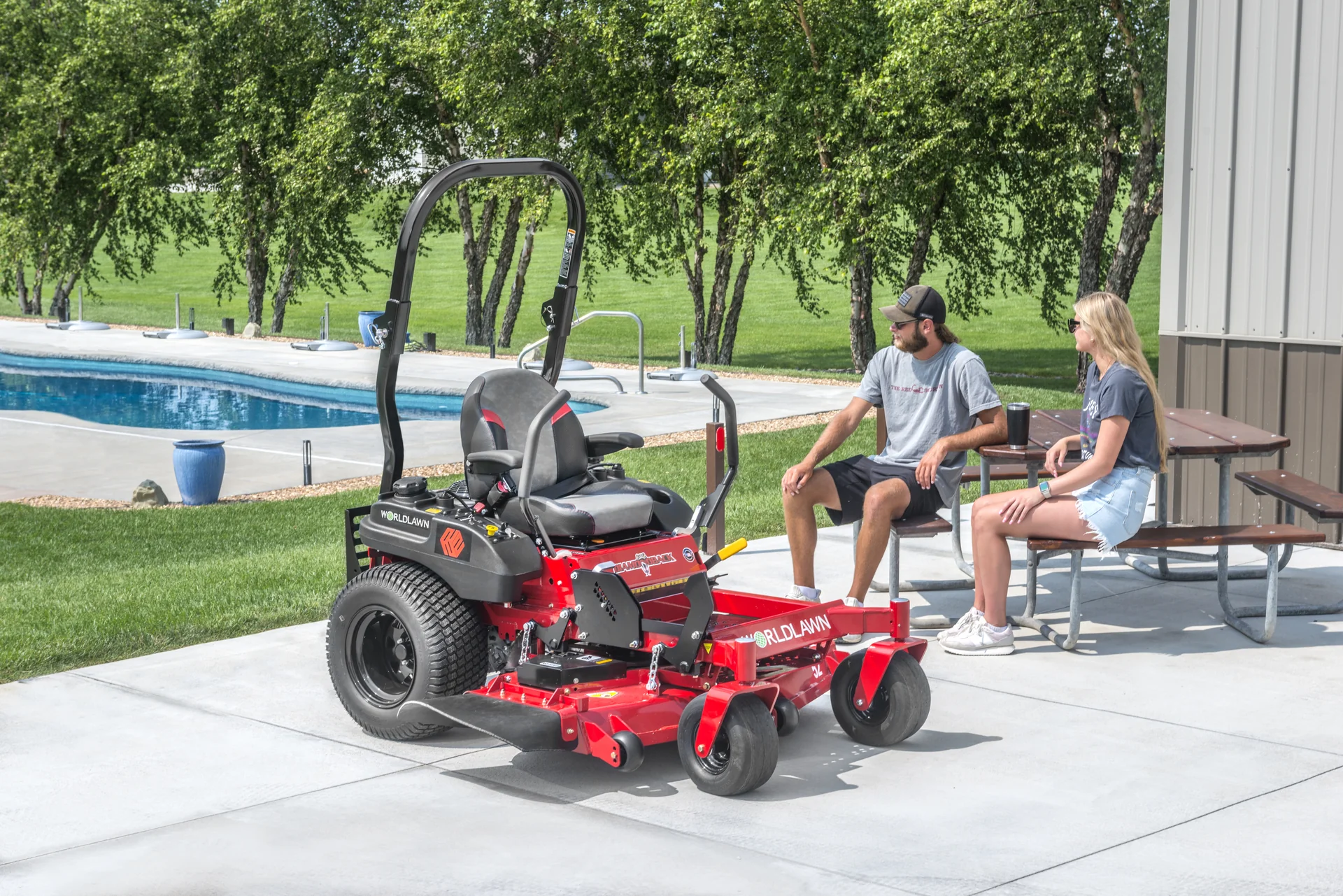

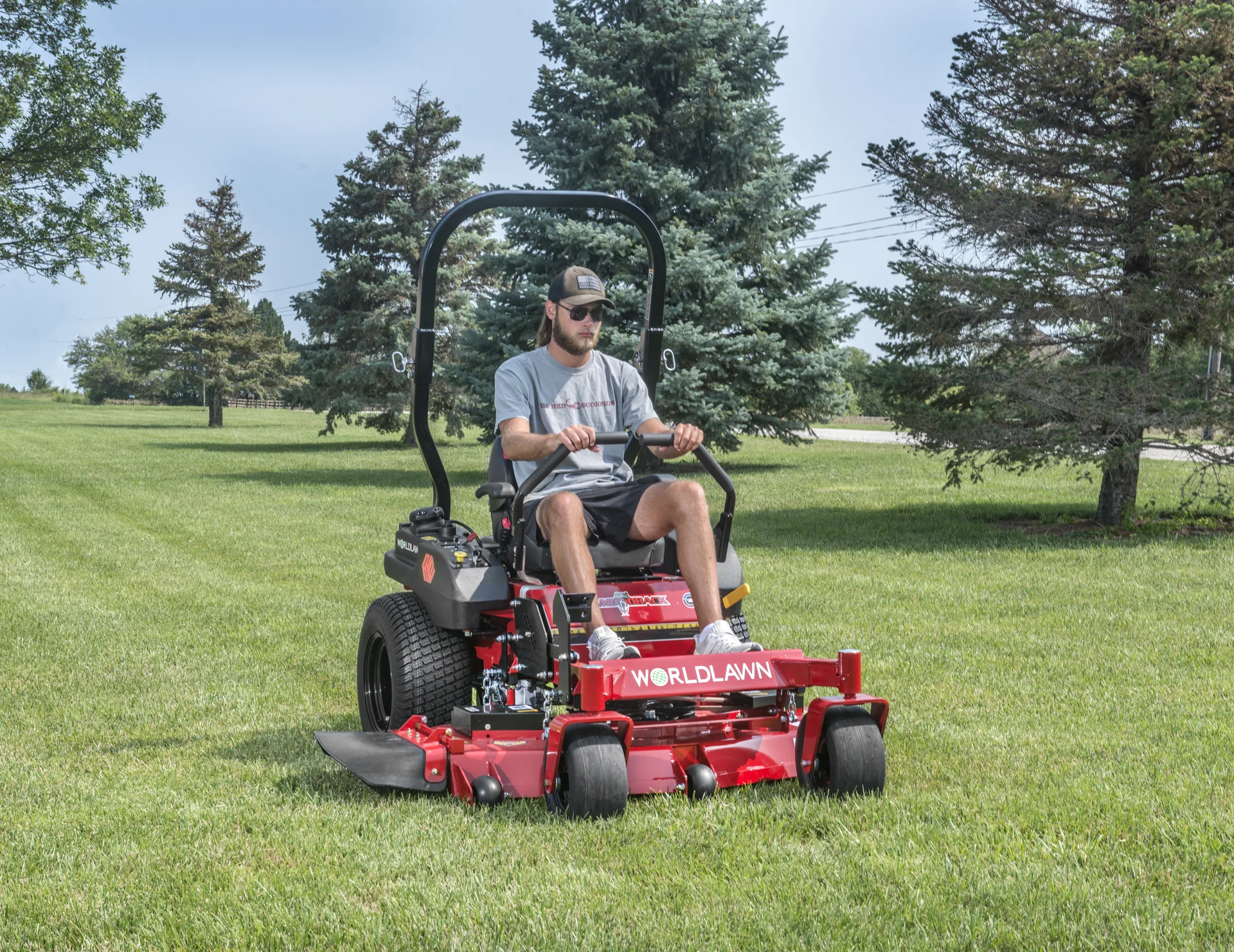

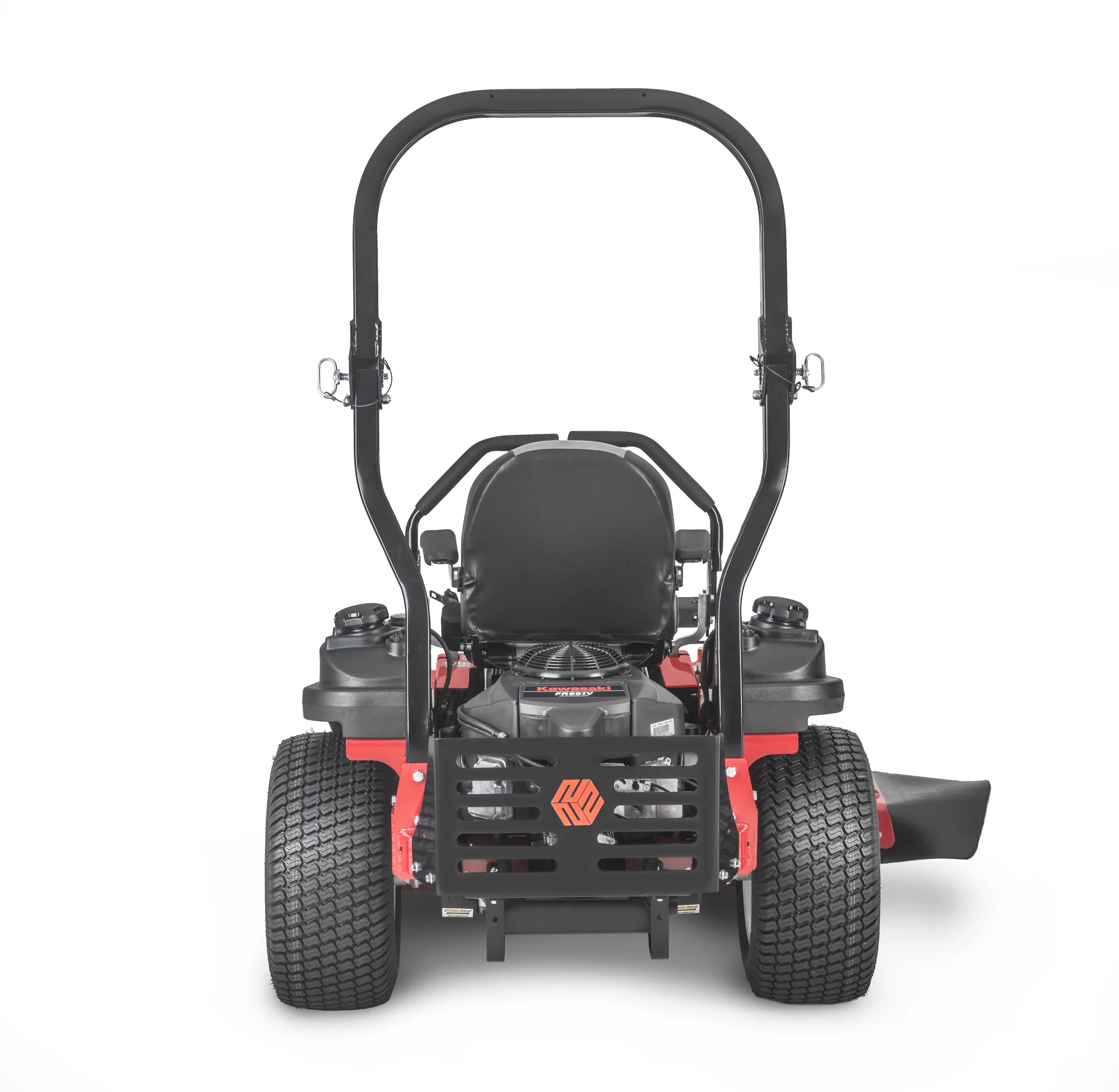

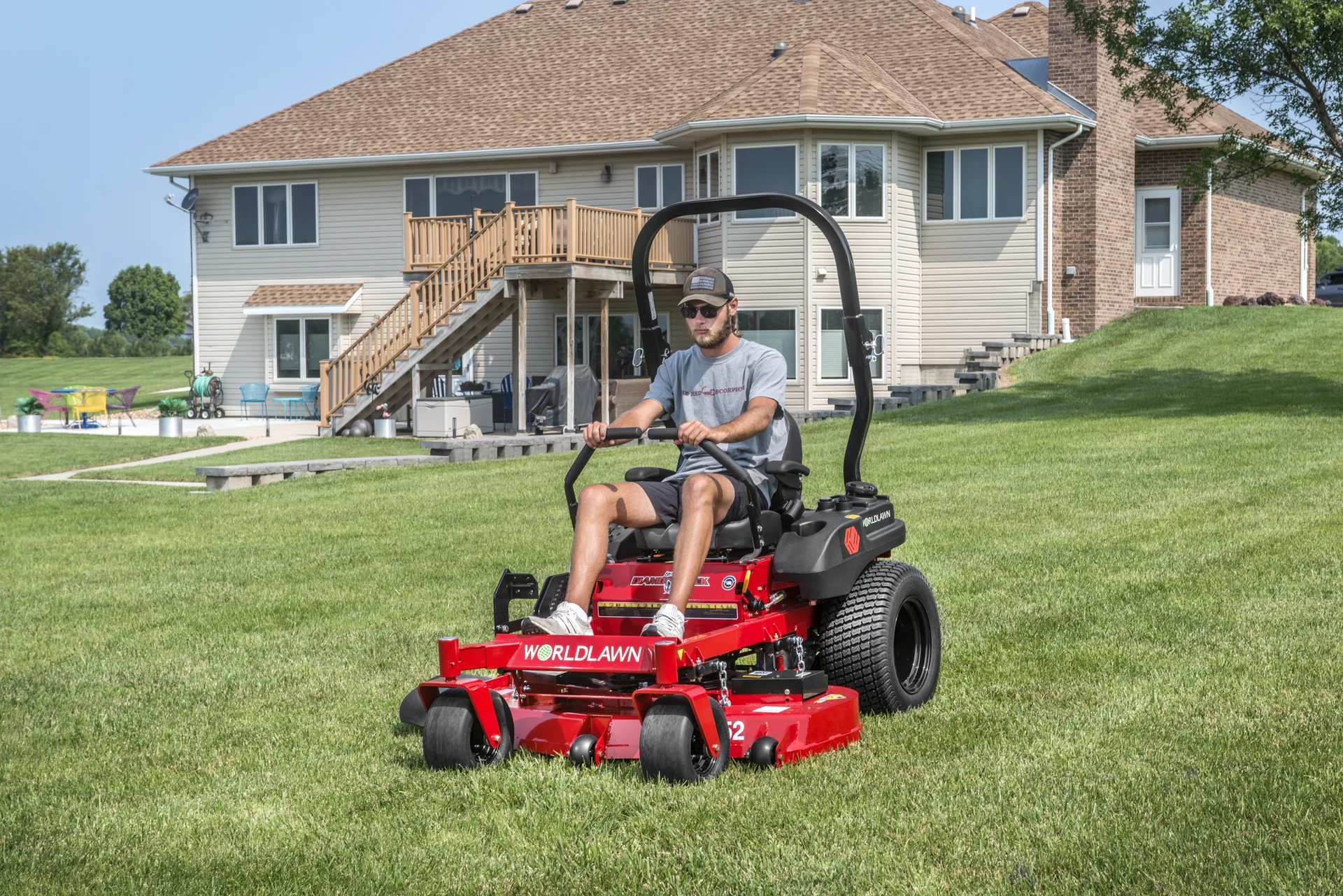

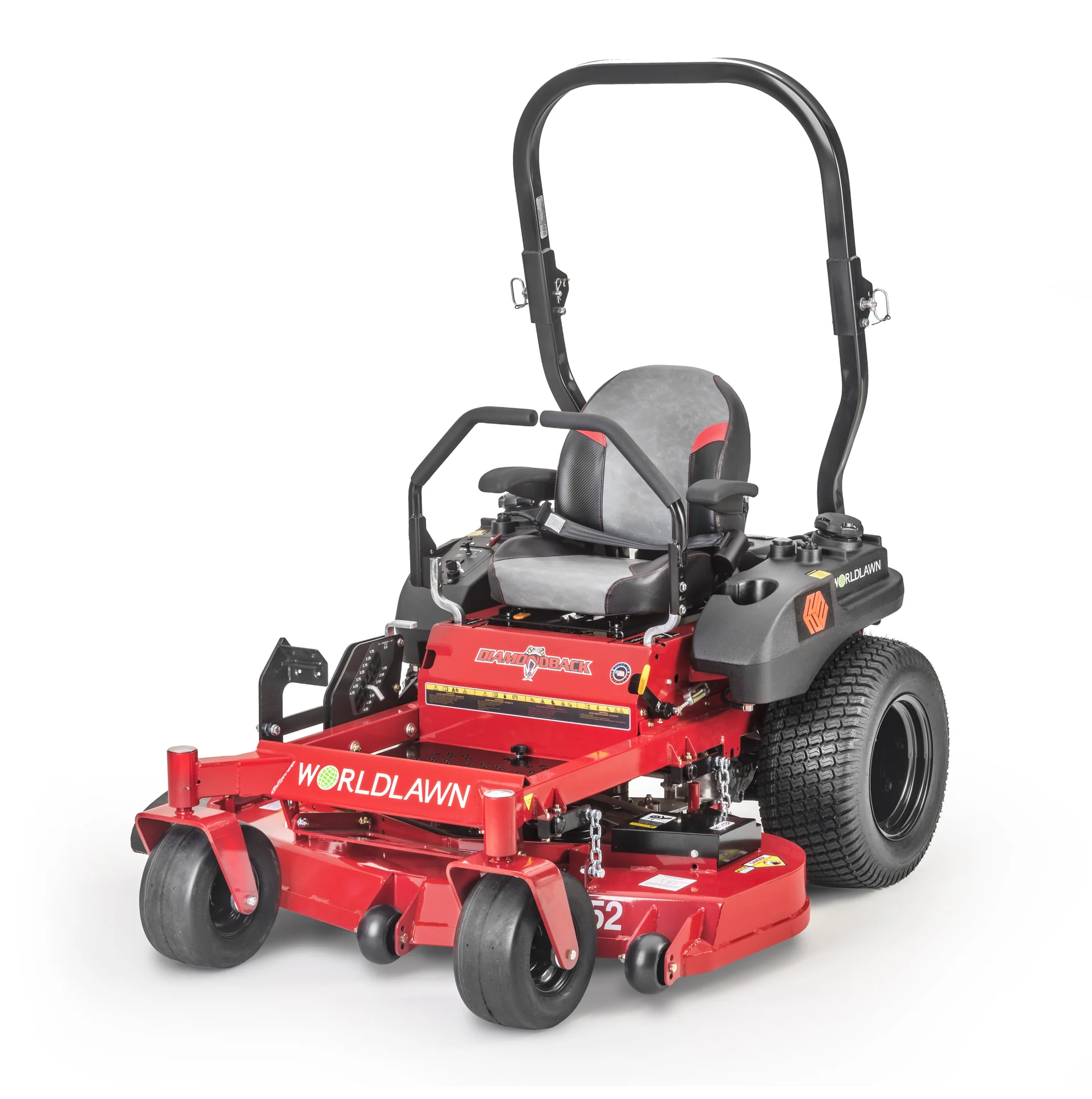

Diamondback 48″ Commercial Zero-Turn — Kawasaki FR 23 HP
$7,567.00
Features
- 3-year commercial warranty
- Kawasaki FR Series engine
- Hydro-Gear ZT-3200
- R.O.P.S. standard
- Triple-layer spindle support
- 8 ga. fabricated steel deck
- 9.5-gallon fuel capacity
- Discharge, mulch, or collect
Ideal For
Commercial landscapers who prefer Kawasaki engine reliability.
Find Dealer
We accept
Additional information
Comprehensive technical specifications and performance data. Engineered for transparency to help you make informed fleet procurement decisions.
Engine & Power
Engine Brand
Kawasaki
Engine Power Output (HP)
23 HP
Engine Start Type
Electric PTO
Fuel Tank Capacity
9.5 gal
Drive System
Transmission Type
Hydrostatic
Transmission Model
Hydro-Gear ZT-3200
Maximum Forward Speed
9 mph
Maximum Reverse Speed
N/A
Powered Reverse
1
Hydraulic Drive Motor
N/A
Front Caster Tire Specification
13 - 6.50 x 6 smooth
Rear Drive Tire Specification
23 - 9.50 x 12 turf
Drive System
Cutting Width
48"
Deck Construction & Gauge
8 ga. Steel
Cutting Height Range
1.5" - 4.75"
Blade Count & Diameter
3 - 16.25"
Blade Drive Motor
N/A
Dimensions & Weight
Overall Length
78"
Overall Width
60"
Overall Width (Deflector Raised)
49"
Operating Weight
920 lbs
Battery & Electrical
Battery Chemistry / Type
N/A
Battery Capacity (Ah / kWh)
N/A
System Voltage (V)
N/A
Full Charge Time
N/A
Estimated Runtime per Charge
N/A
Features & Warranty
Warranty Coverage
3-Year Commercial
LED Headlights
0
